Wide Format DTF Products Sublimation High Speed Digital Printing Machine

Wide Format DTF Products Sublimation High Speed Digital Printing Machine
Wide Format DTF Products Sublimation High Speed Digital Printing Machine Wide Format DTF Products Sublimation High Speed Digital Printing Machine Wide Format DTF Products Sublimation High Speed Digital Printing Machine

Large Image :  Wide Format DTF Products Sublimation High Speed Digital Printing Machine

Product Details:
Place of Origin: china
Brand Name: Huaqi
Model Number: F1908
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5500-15000/set
Packaging Details: poly-wood packing
Delivery Time: 5-10 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 2 sets/day
Contact Now Chat Now

Wide Format DTF Products Sublimation High Speed Digital Printing Machine

Description
Print Width: 1900mm Print Head Configuration: EPSON I3200-A1 (8pcs)
Ink Type: Eco-Friendly High-Concentration Thermal Transfer Printing Dispersion Ink Print Speed: 1 Pass:320㎡/h 2 Pass:160㎡/h
Material Handling: Industrial Grade Feeding And Rewinding System (Air Shaft) Roll Specifications: Width: 1.9m; Diameter: 250mm; Approx. Weight: 180KG
Ink Reservoir: 4L×4 Transmission Interface: USB3.0
RIP Software: Ruiyin /PP/ Main Top RIP
Highlight:

Wide Format DTF Products

,

Sublimation DTF Products

,

Sublimation High Speed Digital Printing Machine

F1908 Wide Format Sublimation Digital High Speed Printing Machine

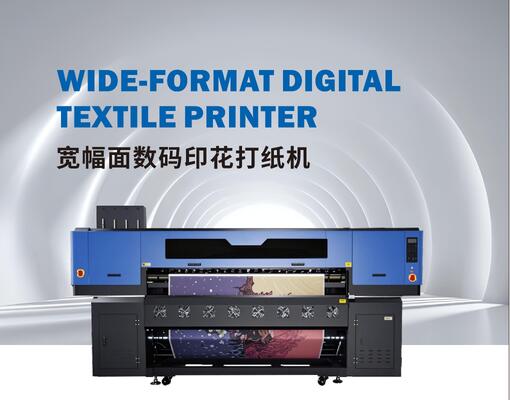

The F1908 wide-format digital printing machine delivers exceptional performance with 8 EPSON i3200-A1 printheads. Featuring a super-wide 1900mm printing width and high-speed output of 320㎡/h (1PASS), it's ideal for diverse applications including fashion clothing, home soft furnishings, sports apparel, wall coverings, and curtains.
Built with a heavy-duty integrated frame and high-precision platform, this printer incorporates professional features such as adjustable pressure paper rollers, silent double guide rails, and air expansion shafts for roll feeding and rewinding. Combined with eco-friendly high-concentration heat transfer ink, it operates reliably on AC220V voltage. With a compact footprint and weight of only 1100KG, it adapts to various production environments, enabling efficient heat transfer printing from fabric to finished products with precision and speed.

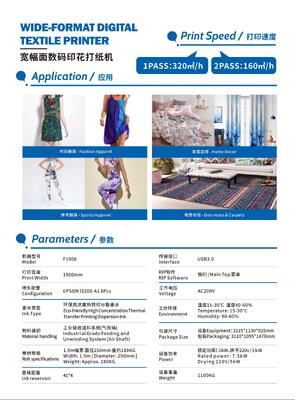

Technical Specifications
Model F1908
Print Width 1900mm
Print Head Configuration EPSON i3200-A1 (8pcs)
Ink Type Eco-Friendly High-Concentration Thermal Transfer Printing Dispersion Ink
Print Speed 1 Pass: 320㎡/h
2 Pass: 160㎡/h
Material Handling Industrial Grade Feeding and Rewinding System (Air Shaft)
Roll Specifications Width: 1.9m; Diameter: 250mm; Approx. Weight: 180KG
Ink Reservoir 4L*4
Transmission Interface USB3.0
RIP Software Ruiyin /PP/ Main Top RIP
Working Voltage AC200V
Working Environment Temperature: 15-30℃; Humidity: 40-60%
Package Size Equipment: 3225*1130*925mm; Package: 3110*1095*1470mm
Rated Power Rated power: 7.5kW (Drying: 220V/5kW)
Equipment Weight 1100KG

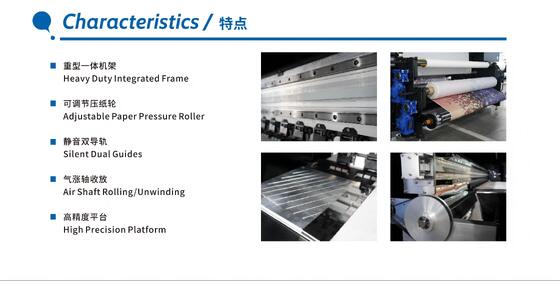

Key Advantages
  • Heavy Duty Integrated Frame
  • Adjustable Paper Pressure Roller
  • Silent Dual Guides
  • Air Shaft Rolling/Unwinding
  • High Precision Platform
Frequently Asked Questions
What is the maximum print width of the F1908 digital printing machine?
The maximum print width is 1900mm (1.9m), supporting wide-format printing needs.
What print head configuration does this machine adopt?
Equipped with 8 pcs EPSON i3200-A1 print heads, ensuring high-speed and high-precision printing.
What type of ink is suitable for the F1908?
It uses eco-friendly high-concentration thermal transfer dispersion ink, safe and with excellent printing effect.
What are the roll material specifications supported by the machine?
It supports roll width 1.9m, max diameter 250mm, and approx weight 180KG, with industrial air shaft for feeding/rewinding.
What RIP software and interface does the F1908 match?
Compatible with Ruiyin/Main Top RIP software, and equipped with USB3.0 high-speed transmission interface.
What are the requirements for the working environment of the machine?
Recommended working temperature: 15-30℃, humidity: 40-60%, ensuring stable operation.
What is the rated power and weight of the F1908?
Rated power is 7.5kW (drying power 5kW/220V), and the equipment net weight is 1100KG.
What is the ink tank configuration of this printing machine?
Configured with 4L*4 ink tanks, meeting continuous large-batch printing ink supply needs.
