1. Multi-layer Stacking Process & 3D Embossed Texture
The device utilizes a three-layer composite printing structure consisting of CMYK color ink, highly opaque white ink, and varnish (V). By precisely controlling the stacking sequence and thickness of each layer, it creates raised textures ranging from 0.1 to 0.5mm, delivering a crystal-clear 3D embossed effect and strong visual impact.
2. Broad Material Compatibility & Curved Surface Adaptability
Leveraging the properties of specialized AB films (PET A film for printing + PVC B film for transfer), this technology overcomes the printhead height limitations of traditional flatbed printing. Without the need for primer pretreatment or high-temperature heat pressing, labels can be perfectly applied to smooth, hard surfaces like glass, metal, ceramic, plastic, and acrylic, easily accommodating irregular curved shapes such as bottles and cups.
3. Industrial-grade High Precision & Superior Weather Resistance
Equipped with high-precision piezoelectric printheads like the Epson XP600 or I3200, it supports output resolutions up to 1440dpi, ensuring sharp reproduction of complex gradients and fine text. Combined with eco-friendly UV-curable inks, the finished products feature waterproof, oil-proof, and scratch-resistant (hardness exceeding 2H) properties, along with excellent UV aging resistance for long-term use in harsh environments.
4. Zero Plate-making Flexible Production & High Efficiency Automation
Eliminating the cumbersome processes of traditional screen printing or die-cutting waste removal, it supports single-piece orders and multi-design gang-run printing. With an integrated system for automatic film feeding, rewinding, negative pressure ink supply, and constant-temperature drying, it achieves continuous "print-and-stick" production, significantly shortening customization lead times and reducing overall costs for small-batch orders.
FAQ: UV DTF Crystal Label Printer – Purchasing & Usage Tips
-
What should I check before purchasing a UV DTF crystal label printer?
Before purchasing, pay attention to the following key factors:
-
Printhead configuration: Models with Epson 13200 or 11600 authorized printheads offer better precision and stability.
-

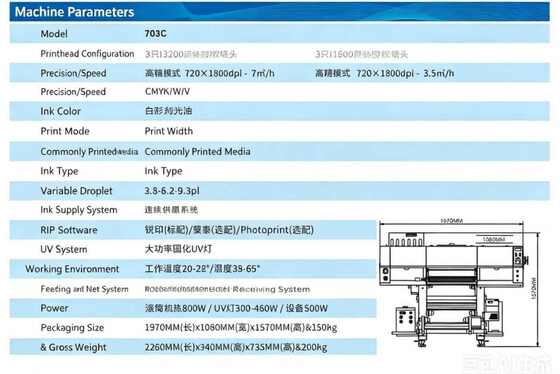

Print width and speed: Ensure the machine supports your typical label size, for example 620mm width, and offers adjustable speed modes, such as 720 by 1800 dpi at 3.5 to 7 square meters per hour.
-
Ink and curing system: Make sure the printer supports CMYK plus White plus Varnish and has a high power UV curing lamp for fast drying.
-
RIP software compatibility: Check if included software, for example Sharp RIP, meets your workflow needs, with optional support for Montai or Photoprint.
-
After sales support: Confirm availability of spare parts, technical support, and training.
-
What are the recommended operating conditions for stable printing?
To ensure consistent print quality and machine longevity:
-
Maintain room temperature between 20 and 28 degrees Celsius and humidity between 38 and 65 percent.
-
Use high quality crystal label AB transfer film as the medium.
-
Keep the UV lamp and heating roller clean and check power supply stability: heating roller 800W, UV lamp 300 to 460W, equipment 500W.
-
Perform regular nozzle cleaning and use the continuous ink supply system to avoid ink starvation.
-
How can I avoid common issues like misalignment or head strikes?

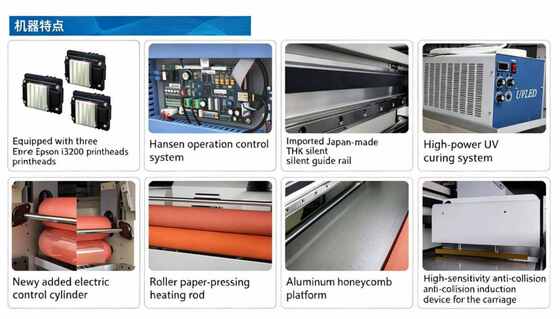

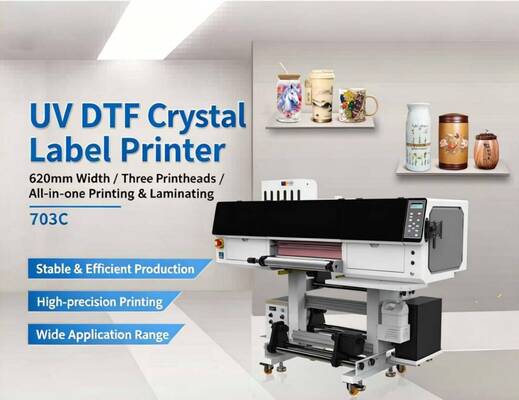

The 703C model includes several protective features, but users should also:
-
Use the high sensitivity crash sensor to prevent printhead damage.
-
Ensure the aluminum honeycomb platen is flat and the media is properly loaded to avoid wrinkling or lifting.
-
Activate the automatic heating roller for better adhesion between A and B films.
-
Regularly check the THK silent rails and cylinder controlled roller system to maintain smooth and accurate media feeding.
